Full Flight EDDK (Gate D10) To EDDL (Cold and Dark manual MCDU Flight Plan from Simbrief)
COCKPIT PREPARATION – CHECKLIST
Wiper (both)
OFF
Weather Radar
OFF
Parking Brake
SET
Engine Master 1&2
OFF
Ingnition Selector
NORMAL
Landing Gear
DOWN
Battery 1&2
ON
Einstellen auf Bodenfrequenz
Bodendienst -> Stromversorgung anfordern
Ext. Power
ON
Simbrief Daten holen
Am besten folgende Daten aufschrieben:
CRZ SYS CI 31
ALTN EHAM
AVG W/C M008
FL STEPS EDDK/0110/
BLOCK FUEL CGN 4506
TAXI CGN 200 0020
Routing: EDDK/32R NVO2B NVO T857 BIKMU BIKMU1X EDDL/05R
PAX 180
PAYLOAD 18.7
ZFW 59.7
TOW 64.0
INIT (A)
FROM/DEST EDDK/EDDL
COST INDEX -> 31
CRZ FL -> 110
ALTN/CO -> EHAM
FLT NBR -> OLI666
ATSU -> AOC MENU -> PERF/W+B
BLOCK FUEL -> 4506
TAXI FUEL -> 200 PERF/W+B (B)
PAYLOAD -> 18700
OFP REQUEST SEND -> We get a ZFWCG of 30.0
PAYLOAD LOAD PERF/W+B (A)
REFUEL LOAD INIT (B)
ZFW/ZFWCG -> 59.7/30
BLOCK -> 4.5
TRIP WIND -> -008
We get a TOW from 64.0 like in Simbrief (fine) PERF
TRANS ALT -> 5000 (Germany)
FLAPS/THS -> 1
V1 (select twice)
VR (select twice)
V2 (select twice)
FROM/DEST EDDK/EDDL
COST INDEX -> 31
CRZ FL -> 110
ALTN/CO -> EHAM
FLT NBR -> OLI666
F-PLN (A)
FROM-> EDDK -> DEPARTURE -> 32R -> NVO2B -> INSERT
NVO -> AIRWAYS -> T857 (VIA) -> BIKMU (TO) -> INSERT
EDDL -> ARRIVAL -> ILS05R -> BIKM1X -> INSERT
ATSU -> AOC MENU -> PERF/W+B
BLOCK FUEL -> 4506
TAXI FUEL -> 200 PERF/W+B (B)
PAYLOAD -> 18700
OFP REQUEST SEND -> We get a ZFWCG of 30.0
PAYLOAD LOAD PERF/W+B (A)
REFUEL LOAD INIT (B)
ZFW/ZFWCG -> 59.7/30
BLOCK -> 4.5
TRIP WIND -> -008
We get a TOW from 64.0 like in Simbrief (fine) PERF
TRANS ALT -> 5000 (Germany)
FLAPS/THS -> 1
V1 (select twice)
VR (select twice)
V2 (select twice)
APU Fire Test
TEST
APU Master
ON
APU Start
ON
Cockpit Lights (PFD/ND/ECAM Etc.)
AS REQ
– Wait for APU AVAIL / Check ECAM –
Ext. Power (When APU Available)
OFF
APU Bleed
ON
X-Bleed
AUTO
Probe Window Heat
ON
Aircon Packs 1&2
ON
Emergency Lights
ARM
Strobe Lights
AUTO
Crew Supply
ON
Electric Hydr.Yellow Pump
ON
ADIRS (IR1,IR2,IR3)
NAV
Engine 1&2 Fire Button
TEST
Transponder
AUTO
Bodendienst -> Ende der Stromversorgung anfordern
INIT (A)
→IRS INIT ALIGN ON REF (is set automatically)
→IRS INIT ALIGN ON REF (is set automatically)
Cool feature is to print the requested weather report
MCDU MENU
-> ATSU -> AOC MENU -> RECEIVED MESSAGES -> METAR -> PRINT *
Click on the paper and it´s placed here:
Howto to read the Metar Information:
Example METAR LOWW:
LOWW -> Station Identifier as ICAO (International Civil Aviation Organization) -> Wien
110350Z -> Date and Time 11th of Month on 03.50 Zulu time
14008KT -> Wind Information -> The wind is from one four zero degrees and is sustained at 8 knots
CAVOK -> Ceiling And Visibility OK
M00/M03 -> Air temperature is -0°C, dew point temperature is -3°C
Q1017 -> ATMOSPHERIC PRESSURE -> QNH at the aerodrome is 1017
NOSIG -> NO SIGnificant changes coming within the next two hours
Good explanation.
-> ATSU -> AOC MENU -> RECEIVED MESSAGES -> METAR -> PRINT *
Click on the paper and it´s placed here:
Howto to read the Metar Information:
Example METAR LOWW:
LOWW -> Station Identifier as ICAO (International Civil Aviation Organization) -> Wien
110350Z -> Date and Time 11th of Month on 03.50 Zulu time
14008KT -> Wind Information -> The wind is from one four zero degrees and is sustained at 8 knots
CAVOK -> Ceiling And Visibility OK
M00/M03 -> Air temperature is -0°C, dew point temperature is -3°C
Q1017 -> ATMOSPHERIC PRESSURE -> QNH at the aerodrome is 1017
NOSIG -> NO SIGnificant changes coming within the next two hours
Good explanation.
COCKPIT PREPARATION – RESUME
ATC Clearance
OBT
Squawk Code
SET
Transponder
AUTO (already set)
ATC/TCAS
STBY
Altimeter QNH
SET (Taste B)
A/SKID
ON
Flight Director
ON
ILS
OFF
PUSHBACK & ENGINE START CHECKLIST
Seatbelt Signs
ON
No Smoking
ON
Beacon Light
ON
Pushback
REQUESTED
Parking
RELEASE
Fuel Pumps
ON
Ignition Selector
START
Engine Master 2
ON (WAIT N2>56%)
Engine Master 1
ON (WAIT N2>56%)
End Of Pushback
REQUESTED
Parking Brake
SET
AFTER ENGINE START BEFORE TAXI- CHECKLIST
ATC Taxi Clearance
OBT
Ignition Selector
NORMAL
APU Bleed
OFF
APU Master
OFF
Nav Lights
SET
Nose Light
TAXI
Rwy Turnoff Lights
AS REQ
Anti-Ice
AS REQ
Auto Brake
MAX
Flaps
T.O.
Ground Spoilers
ARM
Pitch/Rudder Trim
AS REQ
Flight Controls
CHECK
TAXI – PROCEDURE
Parking Break
RELEASE
THR LVR
SLOWLY ADVANCE
Taxi Speed
20-30Kts
BEFORE TAKEOFF / HOLDING POINT – CHECKLIST
Auto Throttle
ON
Nose Light
T.O
Landing Lights
ON
Rwy Turnoff Light
ON
ATC/TCAS
TA/RA
Weather Radar
ON
Weather Radar Mode
MAP
Pred. Windshear
AUTO
Terrain On ND
AS REQ
T.O. Config (ECAM)
CHECK
AP Nav Mod
SET
ATC Takeoff Clearance
OBT
TAKEOFF – PROCEDURE
Line up and brake
Thrust
→ ~ 50% N1
Brakes
→ RELEASE
THR LVR
→ TO/GA or FLEX
@ VR
→ ROTATE
Pitch
→ ~ 12 – max.15° (FOLLOW FD)
@ Postive V/S
→ LANDING GEAR UP
Initial Climb
→ ~ V2+10 (~150-160 KIAS)
@ Thrust reduction altitude (1.500 ft AGL)
Lower nose to accelerate
Pitch → ~ 5° (FOLLOW FD)
THR LVR → CLB
Pitch → ~ 5° (FOLLOW FD)
THR LVR → CLB
@ S Speed (~180-210 KIAS)
→ FLAPS UP
Accelerate to 250 KIAS
AUTOPILOT
AS REQ
AFTER TAKEOFF – CHECKLIST
Landing Gear
CHECK UP
Flaps
CHECK RETRACTED (min. S Speed)
Ground Spoilers
DISARM
CLIMB – CHECKLIST
@TRANSITION Altitude – Altimeter
SET STD
@10.000 ft / FL100
Landing Lights
OFF
Nose Light
OFF
Rwy Turnoff Light
OFF
Terrain On ND
OFF
Seatbelt Signs
AS REQ
CRUISE
Check and monitor the flightplan. Check STAR and APPROACH altitude contraints and compare to actual charts. Check RAD/NAV ILS frequency and compare with actual charts. Estimate your TOD based on your Cruise FL and compare to actual TOD. Descend should begin aprroximately at a distance of 10 NM plus 3 NM per 1.000ft above destinations runway elevation. If ATC is not giving you clearance to descent shortly (3-5 Minutes) after your TOD, then the STAR or APPROACH likely is broken. Start to descent then anyways.
DESCENT
Again, due to a lot of wrong STAR altitudes in MS FS database, you are advised to constantly check your altitude during descent and approach even if you were given clearance to descent at the TOD. For a standard 3° glidepath approach, make sure you are not significantly higher at a given point than the elevationof the destination plus a 1.000ft per 3 NM to go. Example: If you have 21 NM to go, destination is at sea level and you are at an altitude of 12.000 ft, than you are way too high. you should be around 7.000 ft
MCDU PERF APR PAGE (fill out/don´t activate) optional SET BARO / TEMP / MINIMUMS etc.
Wetterdaten von LOWW
In meinem Fall:
1032 hPa, umrechnen in (in Hg – inch of mercury)
1 hPa ≙ 0,02953 in Hg / 1032 * 0,02953 = 30,18 (gerundet)
QNH -> 30.24
TEMP -> 6°
MAG WIND -> 360/8
MDA (Minimum Descent Altitude) -> In Wien ist sie 800′; die Elevation von Wien beträgt 600′; 800-600 = 200.
Der Wert in Klammern der Map aus Navigraph entspricht der DH.
DH (Decision Height) -> 200
Wetterdaten von LOWW
1032 hPa, umrechnen in (in Hg – inch of mercury)
1 hPa ≙ 0,02953 in Hg / 1032 * 0,02953 = 30,18 (gerundet)
QNH -> 30.24
TEMP -> 6°
MAG WIND -> 360/8
MDA (Minimum Descent Altitude) -> In Wien ist sie 800′; die Elevation von Wien beträgt 600′; 800-600 = 200.
Der Wert in Klammern der Map aus Navigraph entspricht der DH.
DH (Decision Height) -> 200
Seatbelt Signs
ON
@10.000 ft / FL100 Landing Lights
ON
Nose Light
ON
Terrain On ND
ON
@Transition Altitude
Altimeter QNH
SET
APPROACH – CHECKLIST
@ ~25 NM to go
Ls(ILS)
ON
Ground Spoilers
ARM
Auto Brakes
MED
Altimeter QNH
CHECK
ILS APPROACH (No Autoland) – PROCEDURE
@ ~ 20 NM to go
MCDU APR MODE → ACTIVATE (if not active yet)
Speed
→ GREEN DOT
On final LOC intercept course
→ AP APPR ON
@ ~ 15 NM to go
Flaps
→ SET 1
@ Glideslope or latest @ 2000 ft AGL/RA
Flaps
→ SET 2
Landing Gear
→ SET DOWN
Flaps
→ SET 3
Flaps
→ SET 4
Missed Approach Altitude
→ SET
try to be in full landing config latest @ ~ 3 NM to go
LANDING – CHECKLIST
@ 3 NM to go
Landing Gear
CHECK 3 GREEN
Flaps
CHECK FULL
Ground Spoilers
CHECK ARM
Auto Brakes
CHECK SET
Max. Landing Weight
66 t / 145.505 lbs
Manual Landing max. Cross-/Tailwind
38/15 kts
ILS LANDING (No Autoland) – PROCEDURE
@ 3NM or ~ 1.000 ft RA
Autopilot
→ OFF
(Sinkrate at standard 3° Glideslope equals 5 * Ground Speed)
@ 30 ft RA
retard THR LVR to IDLE
slowly flare (just plus 1-2° nose up)
retard THR LVR to IDLE
slowly flare (just plus 1-2° nose up)
@ TOUCHDOWN
REVERSE THRUST until 80 Kts
REVERSE THRUST until 80 Kts
AFTER LANDING/TAXI – CHECKLIST
Landing Lights
OFF
Nose Light
TAXI
Rwy Turnoff Light
AS REQ
Ground Spoilers
RETRACT
Flaps
RETRACT
FD/LS/Terrain On ND/Weather Radar
OFF
ATC/TCAS
STBY
APU Master
ON
APU Start
ON
PARKING / GATE – CHECKLIST
Parking Brake
SET
Seatbelt Signs
OFF
Anti Ice
OFF
Probe/Window Heat
OFF
APU Bleed
ON
Engine Master 1 & 2
OFF
Fuel Pumps
OFF
Exterior Lights
OFF
SHUT DOWN – CHECKLIST
ADIRS
OFF
APU Bleed
OFF
APU Master
OFF
Emergency Lights
OFF
Battery 1&2
OFF

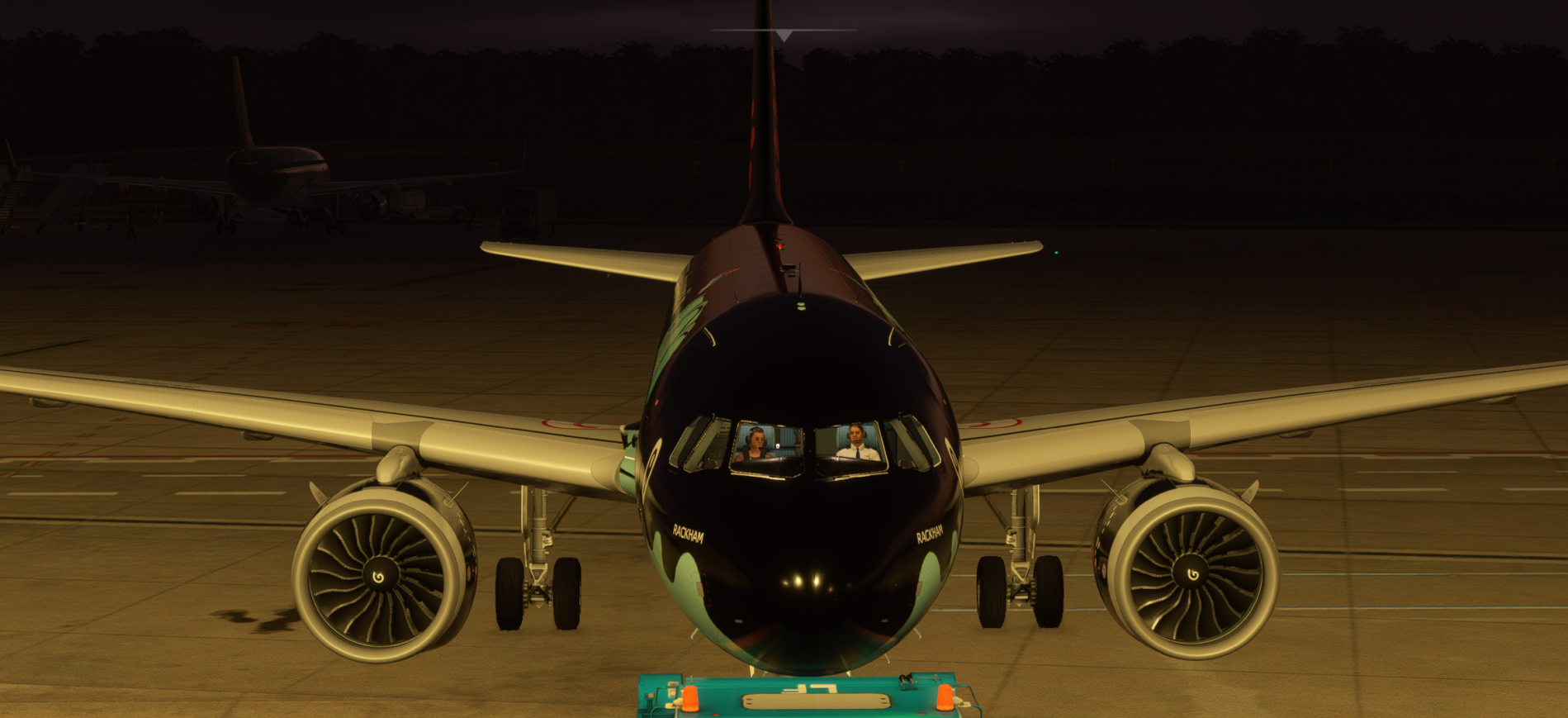

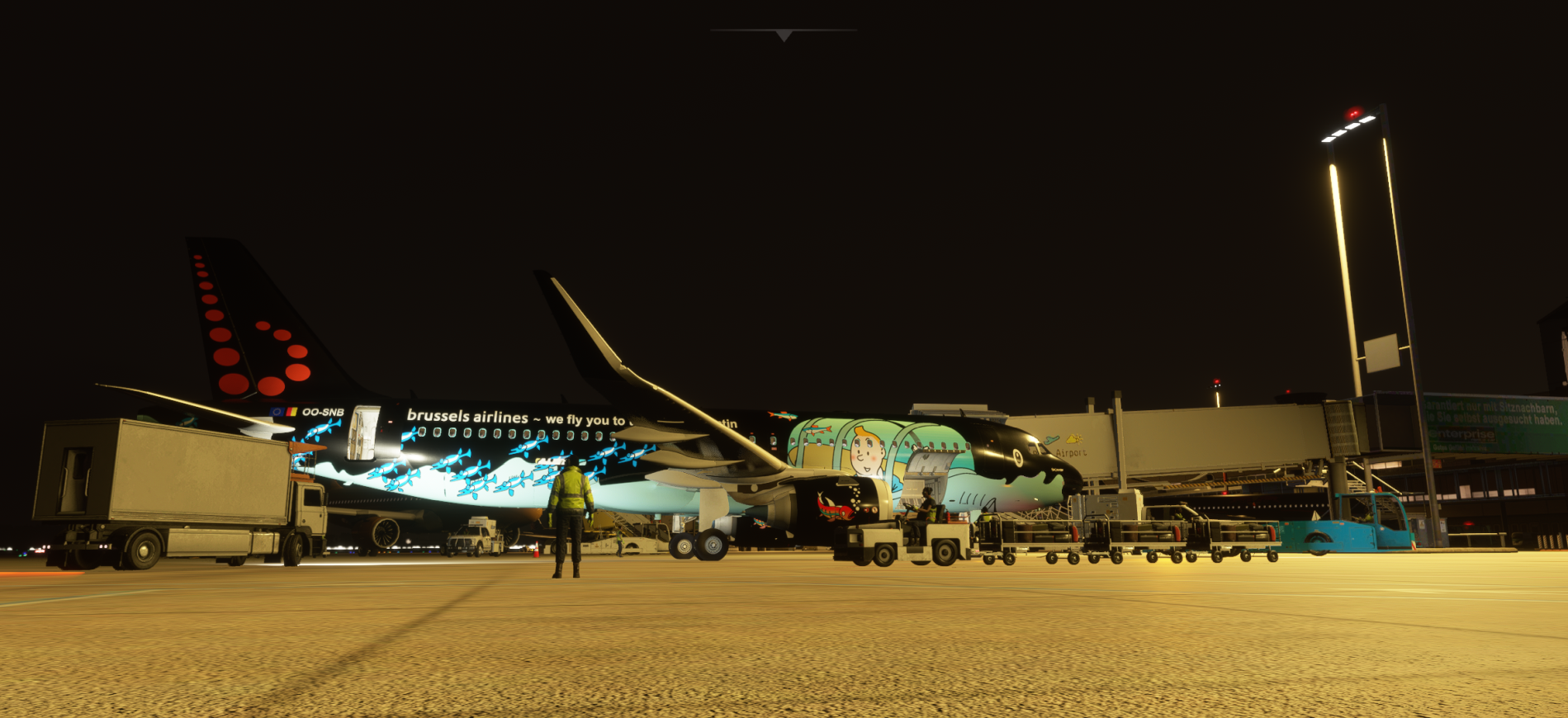

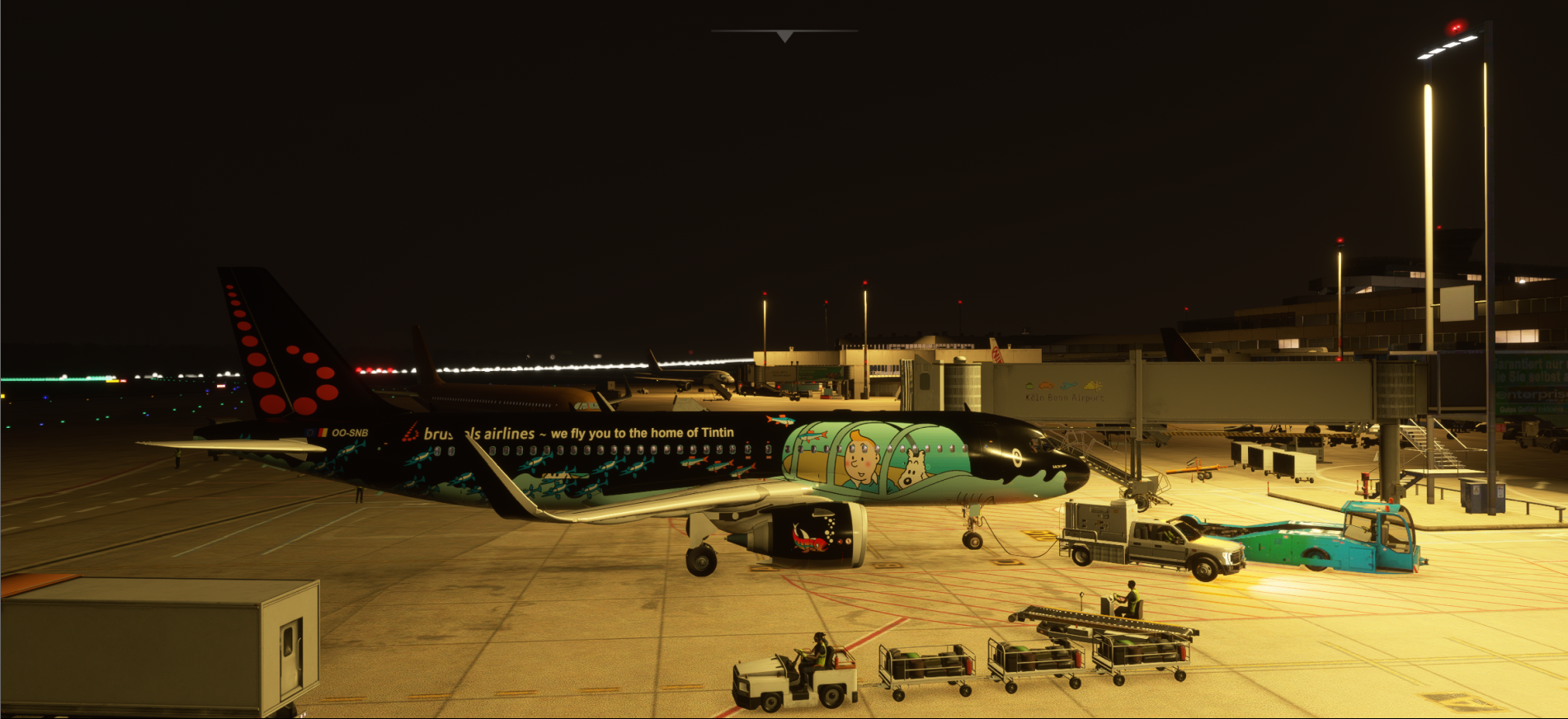

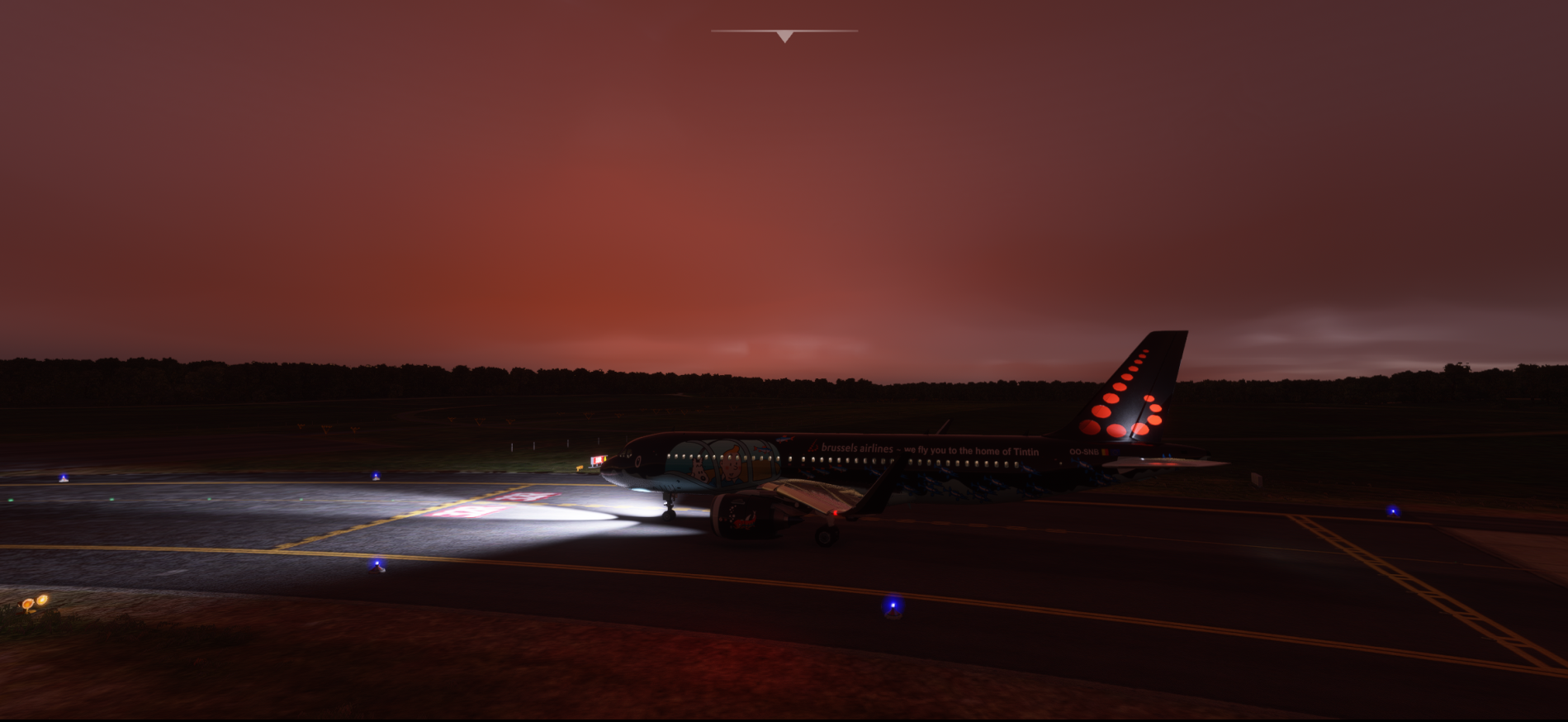

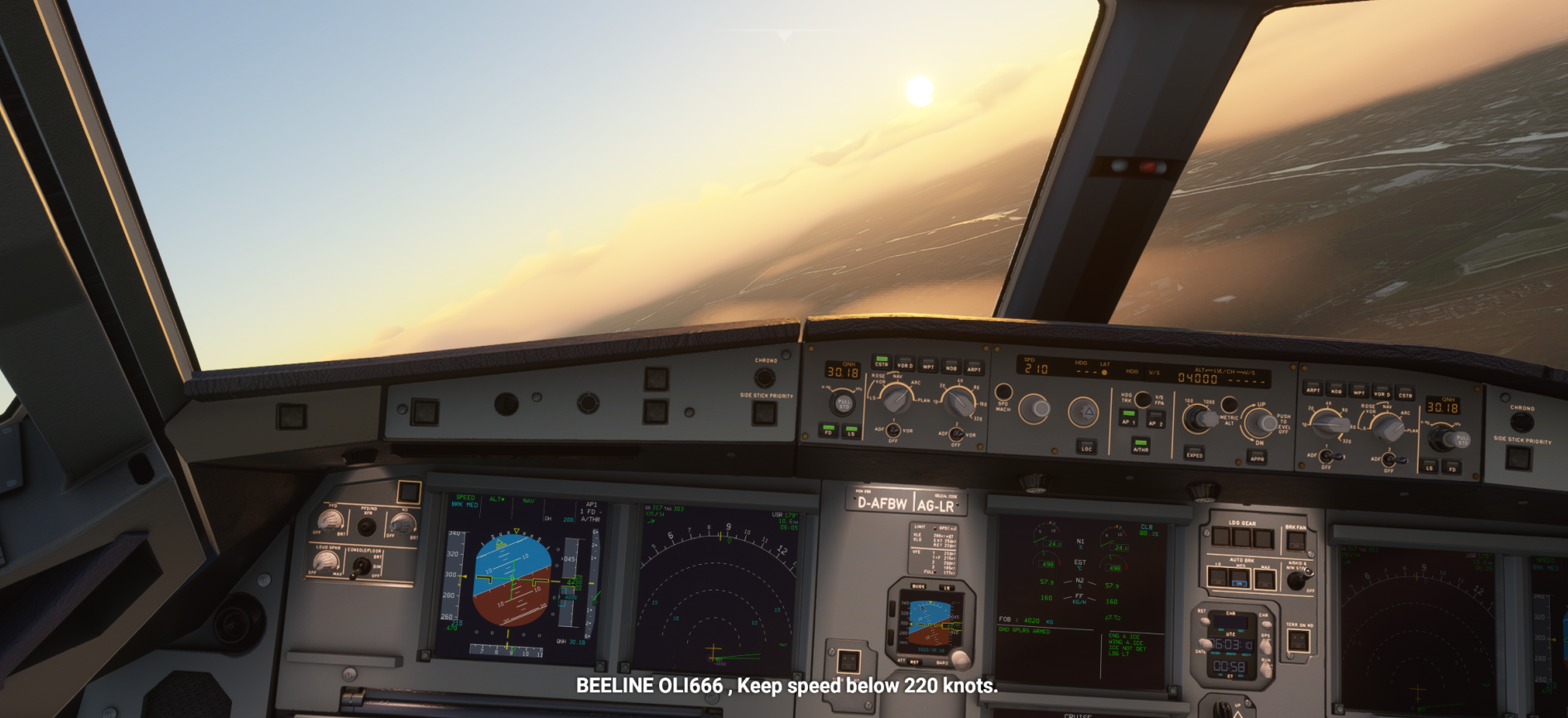

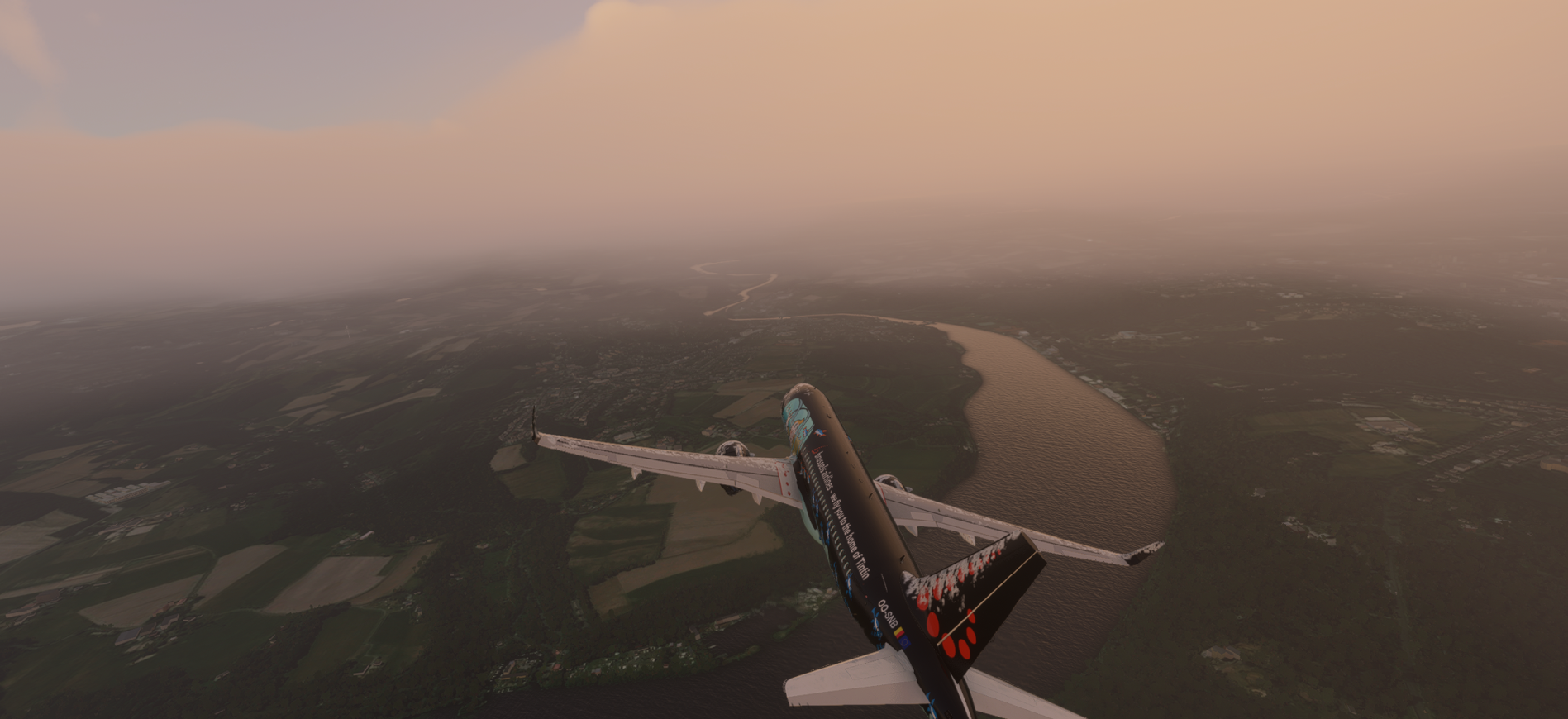

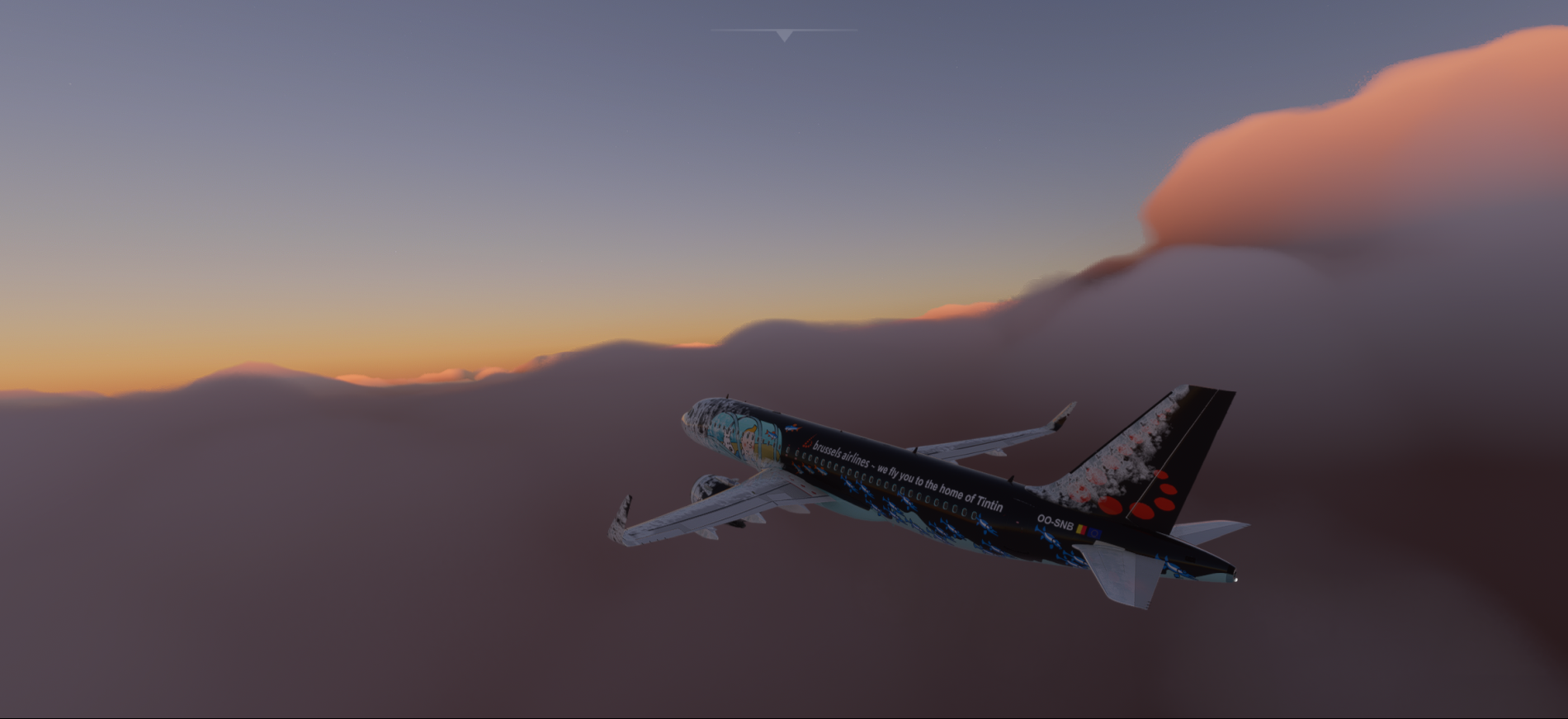

Impressions:
